Control is the third, and final, step in
Conzerv's Enterprise EMS solution. After integrating
the data amassed during Measure, and evaluating the
information from the Detect Phase, Conzerv
customizes an online, real-time energy accounting
and control system that gives clients the power to
control their energy costs. |
| |
|
|
| |
Energy
Management Systems-eLAN® |
|
| |
|
|
|
| |
This
state-of-the-art, interactive energy
management tool helps track energy
usage, identify wastage and
benchmark energy consumption per
unit of output against industry
norms. eLAN® also record trends,
history, and generate
MIS reports in customizable formats.
Applications
- Identifying energy losses
- Online energy balancing
- Precise energy costing per unit of
output
- Benchmarking costs
- Profitability per unit of output
- Pricing decisions
- Identifying potential energy
savings by fine-tuning processes
- Verification of energy savings
post installation of Energy
Management System.

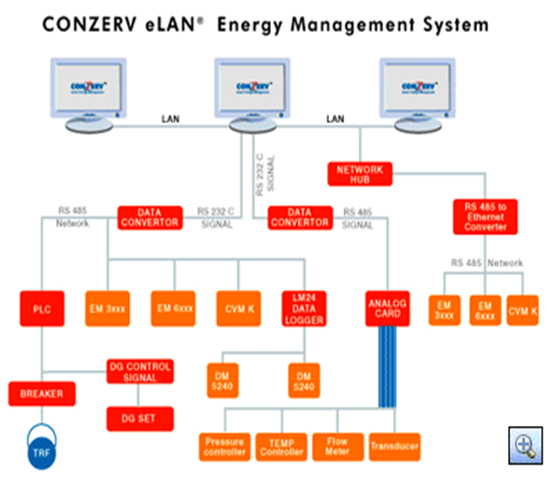

eLAN® combines Conzerv's world-class
electronic energy meters, with our
powerful, Windows-based proprietary
software that enables remote access
and control for energy balancing,
loss tracking and power quality
monitoring, through high-speed data
cables and modems.
Control with eLAN®
- Modules for real-time energy
balancing, distribution loss
tracking, power quality monitoring,
generator control, etc.
- Energy Billing Module to precisely
allocate energy costs across a
commercial complex or over a mix of
products or work centers
- Power Planner Module to help you
make smart power purchase decisions,
based on actual consumption data
- Seamlessly integrates with key,
specialized systems at the client's
facility - either offline with data
import/export via periodic reports
or online with the eLAN® Data-link
Module that connects directly with
client's database
- Remote access to reports for
authorized users over LAN or over
web
- Single point monitoring of
multiple facilities spread across
the globe
- Optional blocks such as PLCs and
sensors/actuators for specialized
extensions towards process
automation or building management
can be integrated
- Advance online alarm if the set
maximum demand Iimit is about to be
exceeded, thus avoiding heavy
excess-demand penalties
- Non-electrical parameters such as
flow, pressure, temperature etc. can
also be incorporated
Benefits
- Accurate costing
- Increased productivity, better
profitability
- Economic power purchase
- Demand Management and Control
- Online cross checking of utility
meters and requisite preventive
measures
- Monitoring of Specific Energy
Consumption and benchmarking
- Measurement of power distribution
loss
- Computing run-hours and off-hours
of the plant equipment based on load
- Online monitoring of single line
diagram thereby analyzing load
balancing and power distribution
- Calculating and maintaining
optimum Power Factor using capacitor
banks
- Monitoring of power quality and
THD
|
|
| |
|
|
|
|
| |
µeLAN® |
|
| |
| |
µeLAN®
Max
µeLAN® Max an Innovative, Cost
Effective Tool to Monitor & Reduce
your Electrical Energy Bills. A
pre-packaged, plug & play system.
It is an indigenously developed
SCADA software package which runs on
Windows - OS (Windows 2000 Prof.,
- Win 2000 Server SP3 or 4, Win XP
Prof. with SP 1) and supports all
the standard - Energy Management
System features.

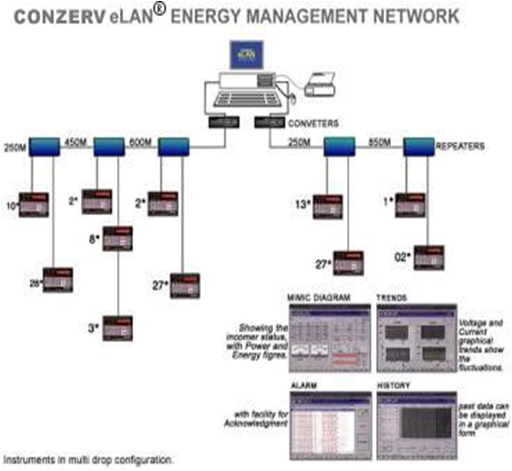

- The software supports online
monitoring of various parameters,
generating history information, and
periodic reports.
- It operates in standard PC
Windows’s environment and
communicates with remote units
connected over RS 485 bus, tied
together by a standard MOBUS
protocol. µeLAN® Max running on a
standard Pentium machine - can cater
to Manager Console and Operator
Console functions.
µeLAN® Max
The µeLAN®Max is the latest in the µeLAN®
series specifically designed for
Central Monitoring and Control.
This plug and play software comes
with advanced features like:
- Database Builder
- Mimics
- Trends
- Alarms
- HistoryViewer
- Reports
Features of µeLAN®Max
- Compatible for 30 Remoteand
replace with - (Any combination of
EM3000, EM 6000, CVM 96, CVM 144 and
LM 24)
- 14 real-time and historical trends
can be viewed
- Can identify Specific Energy
Consumption.
- Tabular views and graphical views
in HMI
- Print snapshots of HMI screens
- Piracy protection through hardware
key
- Export reports to Excel, Doc., PDF
or RTF Format
- Load center names can be modified
as per user requirements
- Benchmarking of all feeders based
on the consumption report
- Reduction in demand charges based
on the demand report
- Specific energy measurement and
reduction
- Measurement of Power factor for
improvement
Computation of running hours and
identification of Idle running of
machine
|
|
| |
|
|
|
|
| |
Smart
Demand Controller - EM3460 |
|
| |
| |
| The Smart
Demand Controller, with its
prediction and control output
features, enables demand control and
optimization.
EM 3460
- Monitoring of Voltage - phase to
phase, phase to neutral - average
and phase wise, Neutral to Earth
voltage
- Monitoring of Current - phase wise
and average
- Phase Angle - voltage and current
- phase wise
- Monitoring of all power & energy
parameters - total as well as
phase-wise
- Records 4 High's and low profiles
for instantaneous and demand
parameter with day, date and time of
occurrence
- TOU for 8 intervals & 7 seasons
for energy & demand parameters
- EB Meter Cross-check
- Monitors demand parameters:
Instantaneous & maximum demand, with
day, date & time
- Synchronizes automatically with EB
meter
- Generates Demand Profile at 19
Demand Levels for setting realistic
demand targets according to
user-programmed Demand Level 0 and
step size
- User programmable upper limit and
lower limit of kW or kVA parameters,
essential load and prediction
interval for sophisticated demand
control
Demand control through unique
predictive technique and sliding
window integration which leads to:
- Reduced energy losses, improved
load factor & minimal disruption in
operations
- Demand intervals selectable from 1
to 30 minutes
- 3 change over potential-free
control outputs for: Predicted
demand exceeds target,
demand exceeds target & restore load
- Spare load and predicted demand
parameters gives advance warning for
planned demand control
|
|
|
|
| |
|
|
|
|
| |
IPFC |
|
| |
| |
Reactive Power System - IPFC*
These microprocessor-based PF
Controllers incorporate
sophisticated, Fast Computerized
Programs (FCP) for reliable,
accurate measurement and control of
the Power Factor.
- Compact & light weight
- Reduces banks switching operations
- Increases capacitor life
- Detects wrong CT connections
- Flexible switching programs
- Protective alarms
- In-Built digital Power Factor
meter
- Accurate and reliable
Static-type power factor
correction available in 8df and 14df
Models
Model 8df & 14df the switching time
can be set within a range 0.1 to
9.95 seconds
Static switches and zero switching
control board are available on
request
|
|
|
|
| |
|
|
|
|
| |
LT
Power Capacitors |
|
| |
|
|
|
| |

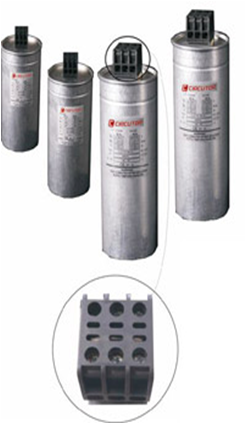

Conzerv
Power Capacitors are MPP-H,
Cylindrical type, advanced gel
Construction with special silver
metalisation. Available in wide
range of KVAR and voltage both in
50Hz and 60Hz
Application
These Capacitors are suitable for
three phase system Power Factor
Improvement
where there is dynamic fluctuation
of load (0-100%) and system voltage
variation,
is 20% and above. For eg., Wind
Mill,Re-rolling Industries, Steel
Industries,
Welding Machines, etc.
Features
Advanced Multi-Metalization
Technology Advanced Gel construction
and special
composition matelization consisting
of the best properties of Aluminium,
Zinc and
Silver Available up to 520V with
50Hz & 60Hz
Explosion proof cylindrical
construction with built-in Pressure
Safety Disconnector
Wide KVAR range, compact sizes
Matching Intelligent Power Factor
Controller
Complete PF correction Panels also
available Fully Automatic winding
process
in clean-room environment. Standards
- IEC 60831, EN 60831.
|
|
| |
|
|
|
|
| |
AMF
Relay - CGM 96 |
|
| |
|
|
|
| |

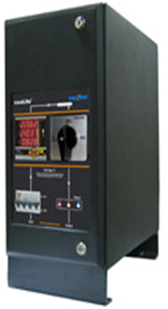

CGM 96-SR is
a Control unit for auto or manual
starting of Diesel Power Generators.
It is equipped with comprehensive
Annuniciator and control actions for
all the mechanical
and electrical parameters. This
sophisticated controller is also
equipped with protective alarms.
Features
- Accurate, true RMS measurements
- Test Run facility to check
generator status
- Compact, light weight
- Fully automatic or manual
starting/stopping of Genset
- Single controller for start and
stop of Generator
- Continuous supervision of
generator and electric mains for
voltage and frequency
- Easily programmable onsite
- Detection & display of battery
level
- Reduces downtime
- Maintenance free
|
|
| |
|
|
|
|
| |
Power
Factor Improvement-PFI Panel |
|
| |
| |

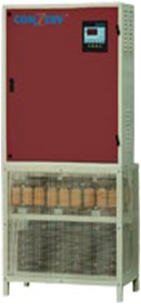

Conzerv's
PFI Panels incorporate Intelligent
Power Factor Controllers, low loss
Capacitors, Capacitor Duty
Contactors, MCB and MCCB to provide
a comprehensive solution for
measurement and improvement of the
power quality with lower payback
periods.
Depending on the load variation the
PFI Panel automatically switches the
externally/internally installed
capacitor ON or OFF to bring it to
the desired or preset value of power
factor.
This integrated management of the
load power factor results in
enhanced power quality as well as
other benefits like:
- Optimum utilization of installed
capacitor bank
- Optimum utilization of demand
- Lower maintenance costs
- Increased efficiencies
- Higher capacitor and contactor
life
Features
- The PFI Panels come with a No-volt
release feature to immediately
disconnect all capacitors in the
event of power failures, detection
and display of over-voltage,
over-current, harmonics and power
factor under compensation
- Compact, standalone / modular
units
- Micro processor Power Factor Relay
- Capacitor duty contactors
- Choice of the type of capacitor
- Low Watt loss
- Short pay-back period
- Digital indication of power
factor, current, THD%
- Automatic self-adjustment to any
kVAr value
- Monitoring of harmonics
- Over-voltage protection
- Optional communication port RS 485
with software
|
|
|
|
| |
|
|
|
|
| |
Energy
Billing System (EBS) |
|
| |
| |
Conzerv's
Energy Billing System is a totally
indigenous, state-of-the-art billing
software package that runs on all
Windows operating
systems and supports standard
features required for billing
purposes. It is an ideal solution
for energy billing in residential
and
commercial complexes.
EBS monitors, computes and
displays the consumption of utility
components. It captures and
centrally displays parameters from
Conzerv's Kwh meters (DM 5240, EM
6434 Series). It computes the
consumption on daily basis and
generates bills in the prescribed
format at the end of the month. EBS
enables online viewing of KWh,
generating history information,
enabling utility to study the energy
consumption profile of each consumer
etc.
Features
- Scalable to add meters as and when
required
- Viewing of real time energy
consumption of individuals or groups
- Runs on all Windows Operating
Systems
- Customized energy billing reports
- Piracy protection through hardware
key
- Collects information from the data
logger continuously or at a
scheduled timing
- Displays all the meters along with
the readings on floor wise basis
- Password protected for access to
different features by different
users
- Provision for taking automatic
backups and generating warning
messages to restrict the size of the
database
- Facility for adding, deleting and
editing customers
- Facility to collect necessary
information (data related to on /
off time of each office damper and
total time) from the Building
- Management Systems and store in
the EBS database
- Data collected from the meters and
the BMS through the system along
with details of EB (Energy charge,
MD charge, etc.) computed by the
software
- Occupant-wise energy consumption
details
- Abstract bill showing the energy
consumption of important load
centers such as air-conditioning,
lighting, common area,
- UPS and energy consumption of the
entire complex
- Summary Report of all the
occupants' bill details
Bills are automatically generated
at the end of the month. Provision
is also made to generate reports
manually
i.e. by entering the previous months
energy reading and the current
months energy reading in the EBS
software.
|
|
| |
|
|
|
|
| |
Harmonic Filter |
|
| |
| |
As more and
more industries opt for process
automation to increase control over
operations and save on energy,
the use of electronic equipment has
also increased simultaneously.
The use of devices such as
variable speed drives, rectifiers,
and energy savers cause harmonics
and transients in the network -
thus defeating their very purpose of
energy efficiency.
Features
Conzerv designs and develops Tuned
Absorption Filters that are
customized to specific needs, and
enhance the power quality by
effectively nullifying the effects
of harmonics.
- Maximum filtering of harmonics
- Reduced heat losses
- Increased system efficiency
- Faster payback
|
|
| |
|
|
|
|
| |
cooLite
™- Lighting Energy Saver |
|
| |
|
|
|
| |
cooLite™helps to save 10 to 20% in
direct lighting energy
consumption. Looks like a computer
CPU, connected to the incommer
of a lighting supply line for
large-area lighting.
Applications
- Suitable for stabilized lighting
circuits in:
- Commercial buildings and complexes
- Service industry- hotels, hospitas, BPOs
and cinema halls
- Public utilities- auditoriums,
stadiums (indoor/outdoor),
educational institutions
- Residential buildings and
apartments
- Municipal corporations for street
lighting
- All industrial facilities
Benefits
- Applications Suitable for
stabilized lighting circuits in:
- High energy savings on lighting
loads- 10-20% direct savings
- Enhanced lamp life and reduced
maintenance cost
- Reduces blackening of fluorescent
lamps
- Reduced aircon costs- cooler lamp
operation
- Reduction in maximum demand -
reduced energy consumption
- Tax benefits for energy saving
investments and 80% depreciation in
the first year in India as per
section 32 of the Income Tax Act
1961
|
|
| |
|
|
|
|
| |
PowerCon - EM 6600 Series |
|
| |
| |
Power
Quality + Control - A new approach
to Energy Management
EM 6600 PowerCon series is a new
approach to Energy Management,
integrating Control I/Os which
enable Process Integration, Breaker
Status Detection, Alarm output,
basic Demand control outputs and
more, directly integrated within the
meter.
Conzerv has also developed matching
advanced eLAN applications for
Specific Energy Consumption in Heat
Treatment, Textile Spinning, Cement
and much more.
Applications
- Integration of Power Quality
Measurement and Control:
- Monitors the over limit value of
power quality parameters, which can
trigger a sound or light alarm
through a DO and hence control
limits.
- MCC ( Motor control
Centers) Monitors loading
characteristic of motor, Load - ON
and OFF duration can be recorded in
eLAN using the DI status.
- Optimizes Demand Utilization Idle
time minimization by monitoring the
loading pattern.
- Power Distribution Automation
- Breaker Status monitoring - Remote
PC can read the status of the
breaker through the DI assigned in
the meter.
- Industrial Automation- Conveyor
start / stop, Furnace heater ON /
OFF etc ,can be controlled from a
remote PC using the DI ,status in
the meter and eLAN energy management
SW.
- Energy Management System - Saves
energy for industrial and commercial
complex
- Shopping malls, hotels, campus,
utility, Govt facilities,
intelligent buildings
- Monitors the power quality and
records energy consumption
independently as well as a part of
the energy management network.
- Textile ring frame machine
Specific Energy Consumption (SEC),
doff duration and interval.
- Heat Treatment furnace, Cement,
etc
- Load pattern monitoring like, ON
time, OFF time etc and minimize the
idle time.
Features & Benefits
- Multi -data LCD Display 4 RMS
Parameters continuous Energy display
- I/Os - 4 Digital I/Ps, 2 Digital
O/Ps, 2 Relay O/Ps
- Power Quality Measurements
- Min/Max Statistics
- Individual Harmonic measurements
upto 31st harmonic
- Measurement
- Voltage and current 3 phase & Avg
- Accept Standard CT & PT inputs
- Direct connect upto 480VLL
- Frequency
- Neutral current
- kVA,kW, kVAR 3 phase &
total,Demand
- PF with lead and lag indication
- Bi-directional kWh / kVARh Total &
Net
- Wiring mode configuration
- 3-Phase, 3-wire Delta
- 3-Phase, 4-wire Wye(Star),1-Phase
- Universal ac/dc power supply
- 85 to 264V ac or 100 to 300V dc
- Burden < 3.5 VA
- Communication Built In
- Isolated RS-485 Port
- Modbus RTU Protocol
|
|
|
ing the data amassed during Measure, and evaluating the
information from the Detect Phase, Conzerv customizes an
online, real-time energy accounting and control system that
gives clients the power to control their energy costs.
|
|
บริษัท ไทยเทคนิคอีเล็คตริค มีนบุรี จำกัด
26/49-50 หมู่ 13 ถนนสุวินทวงศ์ แขวงแสนแสบ เขตมีนบุรี กรุงเทพฯ 10510
โทรศัพท์ 02)919-4686-90 โทรสาร (02)917-3680, 02)9194691
Web Site: www.thaimin.co.th E-mail: kane@thaimin.co.th, sanya@thaimin.co.th
|
|
|
|
